1.Max Working Pressure: 700bar;

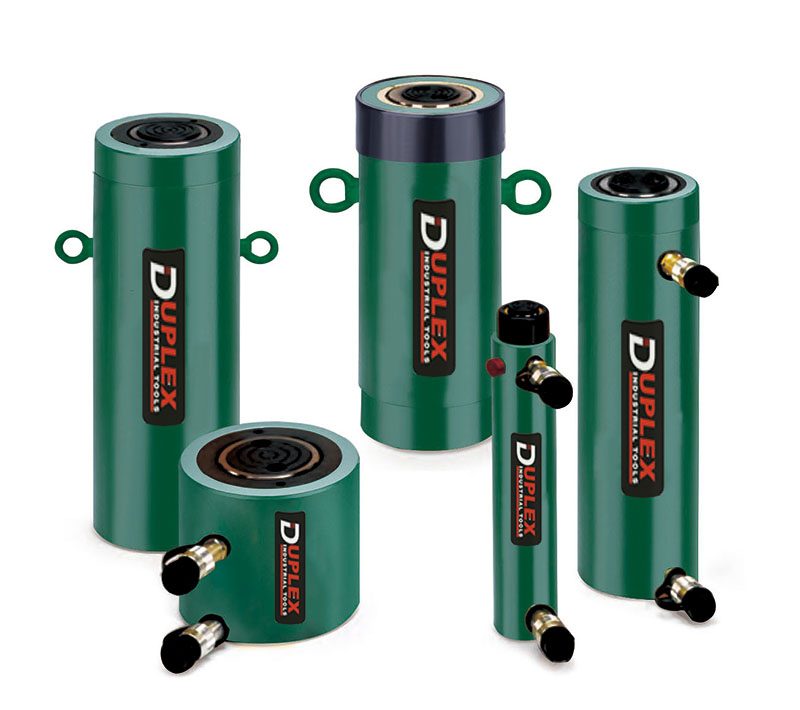

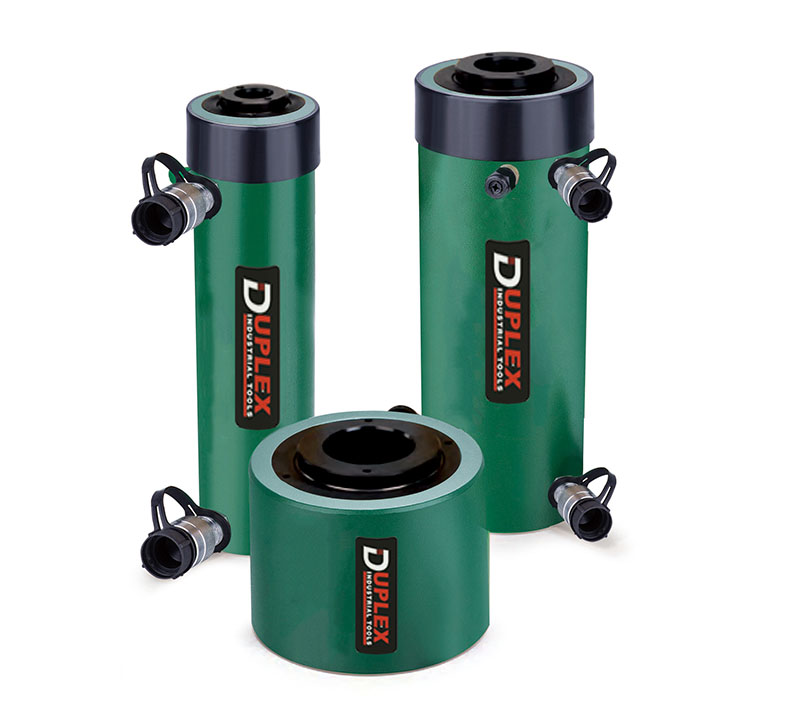

2.These double acting cylinders enable quick retraction and are designed to be used in all orientations ;
3.Base mounting holes are standard on all models;
4.Unique loading design enables it to bear unbalanced loads up to 3% capacity with no damage to the cylinder;
5.The cylinder piston rod is protected from damage by the interchangeable hardened saddles;
6.Tilt saddles are optional;
7.Over-pressurisation is prevented due to built in safety valves;
8.The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension;
9.The dust ring prevents contamination and enhances longer cylinder life.
